Specifications
Part Number
200-378-00
Unit Weight
5.9 lb. (2.68 kg)
Typical Overhaul
5 years/1,000 hours
Design Load
2,000 lb. (907 kg)

MD500 Series

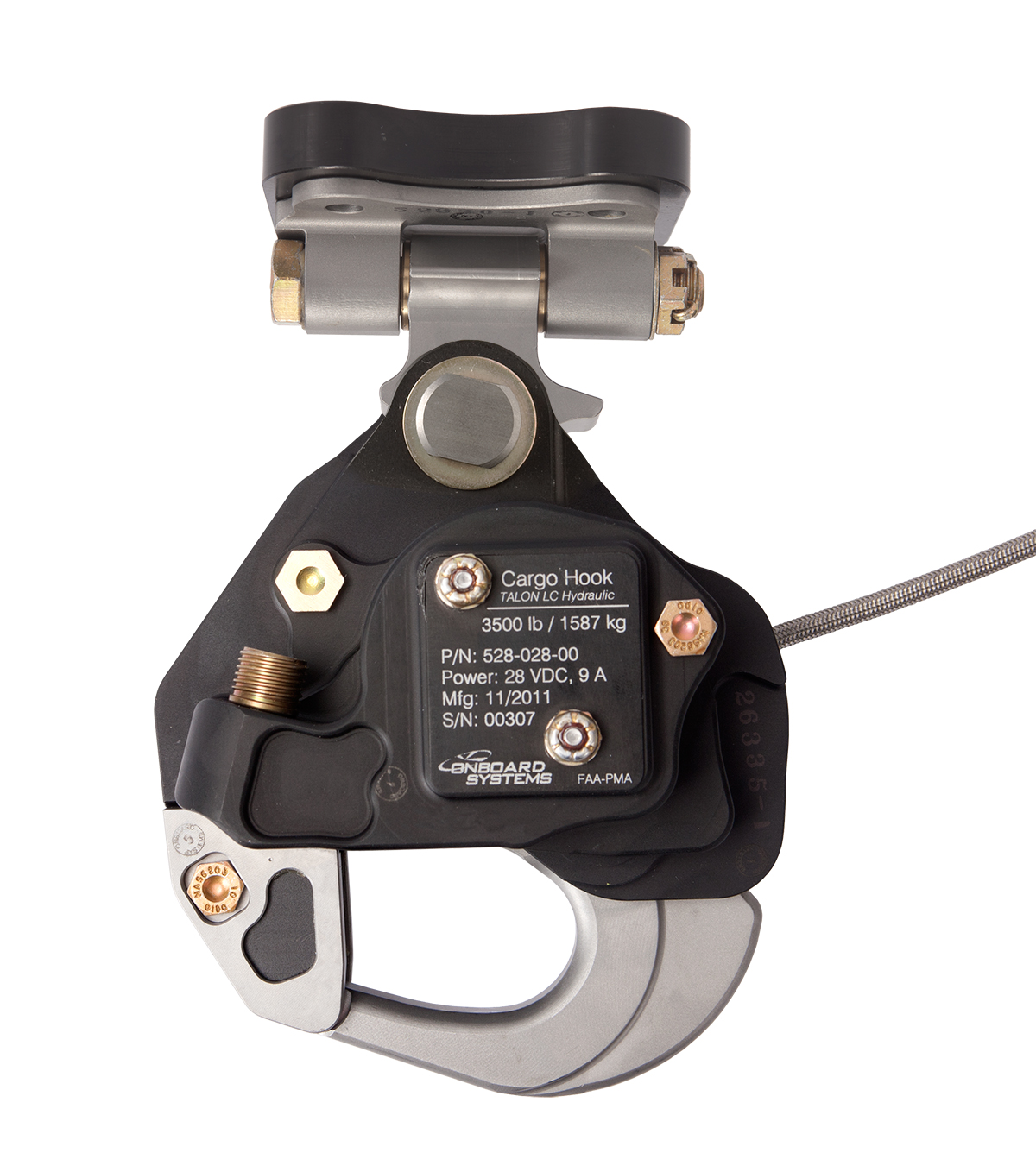

TALON LC Hydraulic Cargo Hook Kit with Attach Point

Product Number: 200-378-00

Call to confirm availability

Reduce ongoing maintenance costs with Onboard's reliable cargo hook kits for MD aircraft. Our cargo hook kits can be installed on new aircraft or used to upgrade older equipment with all the latest safety and design innovations. Onboard's cargo hook kits are OEM approved and are also a factory option for new aircraft. If your helicopter has not been previously equipped with a hook, a hook attach point is also available for purchase, as well as an optional Onboard Weighing System.

View Manuals, Certifications, and Hardware Notes Send Me A Quote Add to Cart

Benefits

  • Easy Field Installation:Available in easy-to-install kits for new installation or replacement of existing hook equipment.
  • Easy Maintenance & Overhaul:Onboard cargo hooks can be overhauled in the field, at our factory, or by a qualified repair facility using simple hand tools. Quick parts availability minimizes downtime!
  • Low Maintenance Costs:Maintenance costs for Onboard cargo hooks are typically five to ten times less expensive when compared to other cargo hooks on the market.
  • Includes Attach Point:The attach point comes with built-in travel stops to help prevent both the hook and control cables from impacting the aircraft frame, and provides an additional .75-inch clearance for the cables. Bushings at the hook pivot point and link make it easier and less expensive to perform ongoing maintenance.
  • Onboard Weighing System Option:Know the exact weight of your load! Our pin load cell replaces the attach bolt, eliminating extra linkage.
  • TALON® LC Hydraulic Hook:Our hydraulic hook greatly increases load security by using a hydraulically activated release mechanism instead of a traditional manual release cable.
  • The Onboard Advantage:Our cargo hook kits can be installed on new or existing aircraft using standard hand tools. Time between overhauls is five years or 1,000 operating hours. And because Onboard Systems maintains a large inventory of cargo hook kits and spare parts, we can usually ship your order out quickly.


Certifications

FAAFAA CANADACANADA BRAZILBRAZIL

Hardware Notes

  • Requires Onboard Systems attach point (P/N 200-231-02)
  • Requires additional parts as specified in the kit Owner's Manual
  • Requires OEM Fixed Provisions Kit and Onboard Systems attach point (P/N 200-231-02)
