Specifications
Part Number
530-023-00
Unit Weight
1.1 lb. (.5 kg)
Working Load Limit (WLL)
3,600 lb. (1,633 kg)
Ultimate Load
18,000 lb. (8,165 kg)
Inner Dimensions (Shackle End)
1.1 x .825 in. (27.9 x 21 mm)
Inner Dimensions (Closed Loop)
1.5 x 1.6 in. (38.1 x 40.7 mm)

Rings & Shackles

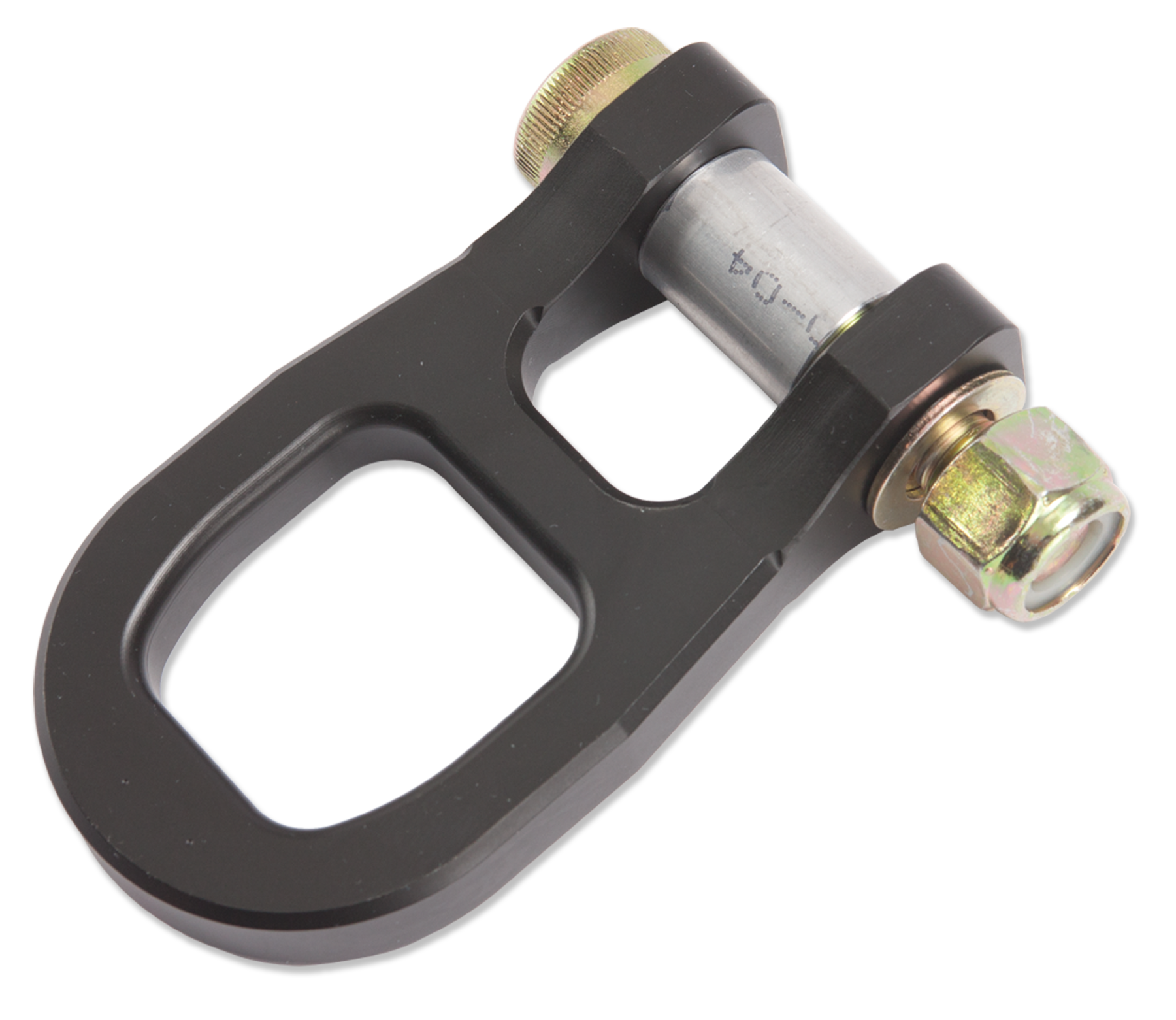

D-Ring Shackle

Product Number: 530-023-00

Call to confirm availability

For your convenience, we now stock shackles and load rings for use with our cargo hook equipment. Now you can drop-ship everything you will need for a contract directly to your worksite, including the hook, long lines, nets, swivels, shackles and load rings.



Our D-Ring Shackle meets the load ring size requirements as listed in the Owner's Manual for our TALON light-class (LC) Cargo Hooks.

NOTE: Recommended for use with these cargo hooks: 528-010-XX, 528-023-XX, 528-028-XX, 528-029-XX

View Manuals, Certifications, and Hardware Notes Send Me A Quote Add to Cart

Benefits

  • Dual-Port Efficiency:Single piece linkage includes a closed loop opening for the cargo hook load beam and a shackle opening for the long line, cargo net or other rigging.
  • Proper Sizing:Meets the size requirements as listed in the remote hook Owner's Manual.
  • Convenience:Now you can order the linkage you'll need for rigging a load at the same time you order your remote hooks and long lines.
