Specifications
Part Number
528-049-00
Rated Load (Single Hook Installation)
3,000 lb. (1,360 kg)
Primary Hook Load (NHEC)
2,205 lb. (1,000 kg)
Secondary Hook Load (HEC)
1,323 lb. (600 kg)
Minimum Release Load
0 lb. (0 kg)
Release Capacity
7,500 lb. (3,402 kg)
Design Ultimate Strength
11,250 lb. (5,103 kg)
Unit Weight
3.7 lb. (1.68 kg)
Typical Overhaul
5 years/1,000 hours

Airbus Helicopters EC135

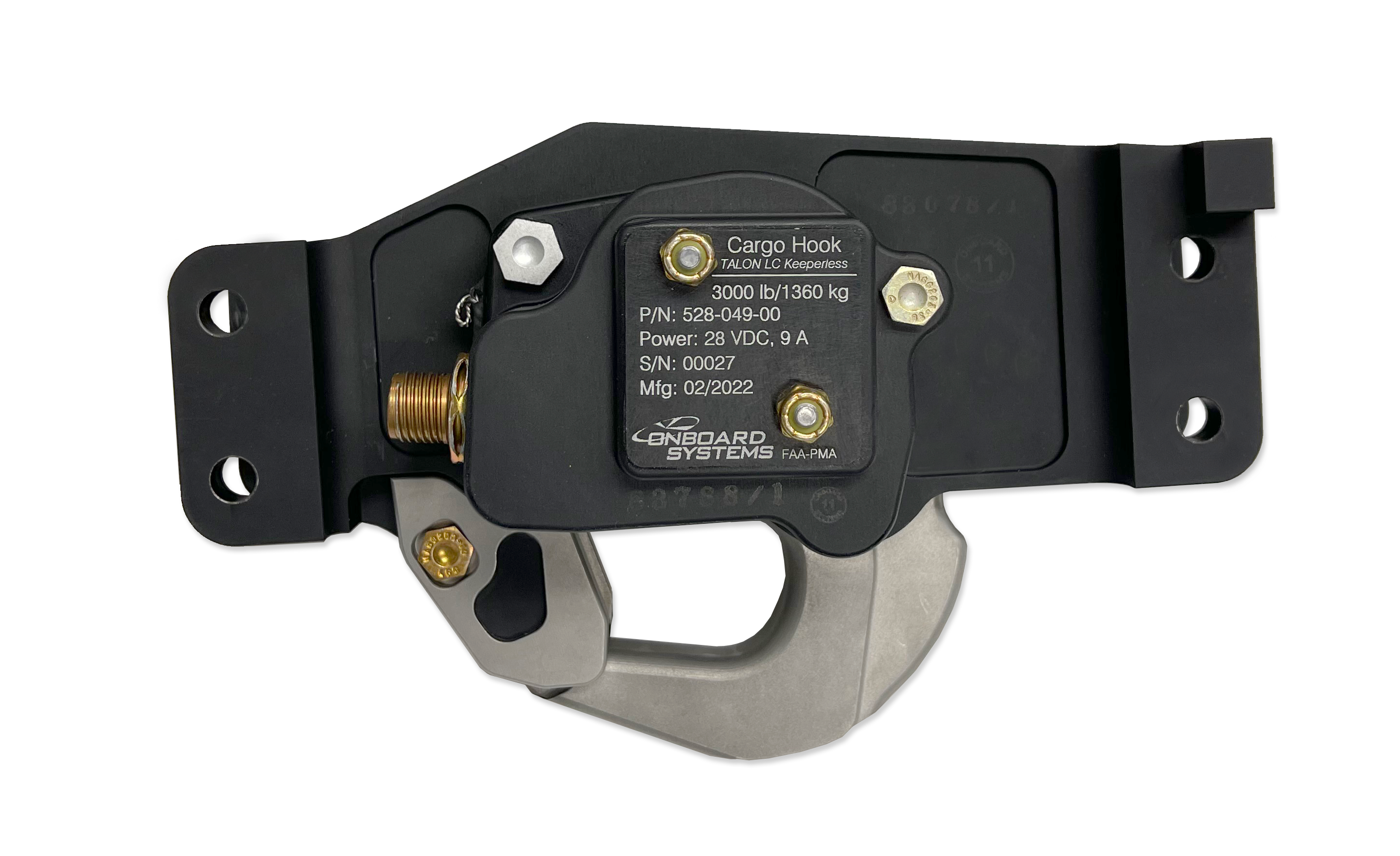

TALON LC Keeperless Cargo Hook

Product Number: 528-049-00

Call to confirm availability

We've upped the ante on our signature keeperless design! Our next generation TALON LC Keeperless Cargo Hook is ingenious, yet simple — and now features a lock indicator window. To eliminate the risk that a load ring could escape by slipping past the keeper during operation, we simply removed the keeper and replaced it with a unique load beam system that stays open after the load is jettisoned. Closing is accomplished by pushing upward on the load beam with the rigging. Best of all, the keeperless hook design safely handles a wide variety of load ring sizes and styles — and now opens even wider than before.

NOTE: For use on Airbus EC135 aircraft equipped with a double-hook configuration load-beam.

View Manuals, Certifications, and Hardware Notes

Benefits

  • Lock Indicator Window:For added safety, a lock indicator window on the side of the hook gives the ground crew an easy visual signal that the hook is locked.
  • Wider Mouth Opening:We've increased the maximum angle of the hook opening to almost 90° for easier loading and unloading.
  • Internal Redesign:To simplify maintenance, we've redesigned the internal mechanisms of the the hook. It's never been easier to overhaul your own hook!
  • Release Safety:Onboard cargo hooks are designed to release 2.5 times rated load. In an emergency situation, such as a longline snag, Onboard hooks give pilots a significant margin of safety in which to release the cargo load.
  • Easy Maintenance & Overhaul:Onboard cargo hooks can be overhauled in the field, at our factory, or by a qualified repair facility using simple hand tools. Quick parts availability minimizes downtime!
  • Easy Installation:Installation is quick and easy with readily available tools. Assembly instructions can be found in the documentation for this hook, which can be downloaded from our website.
  • The Onboard Advantage:Our cargo hook kits can be installed on new or existing aircraft using standard hand tools. Time between overhauls is five years or 1,000 operating hours. And because Onboard Systems maintains a large inventory of cargo hook kits and spare parts, we can usually ship your order out quickly.


Certifications

FAAFAA CANADACANADA EASAEASA
