Specifications
Part Number
200-340-00
Design Load
800 lb. (363 kg)
Unit Weight
2 lb. (.9 kg)
Indicator Dimensions
See Diagram
Typical Overhaul
5 years/1,000 hours
Model
E-83

Robinson R44 Raven II

Model E-83 Pin-Style Onboard Weighing System

Product Number: 200-340-00

Call to confirm availability

Increase productivity, safety and accurate external load weight reporting with a digitally-accurate weighing system from Onboard Systems. This load weigh system is designed to integrate seamlessly with Onboard's cargo hook system for your R44 Raven II helicopter. Lift with confidence every time while safely increasing your average loads and improving operational efficiency.

NOTE: For Robinson R44 and Raven II helicopters with 28V systems

View Manuals, Certifications, and Hardware Notes Send Me A Quote Add to Cart

Benefits

  • Highly Accurate:Digital technology in our weighing systems ensures consistently reliable measurements.
  • Safely Lift Heavier Average Loads:Ramp up productivity by eliminating guessing games about the weight of your load. When the pilot knows the exact weight being carried, there's no need to err on the side of caution.

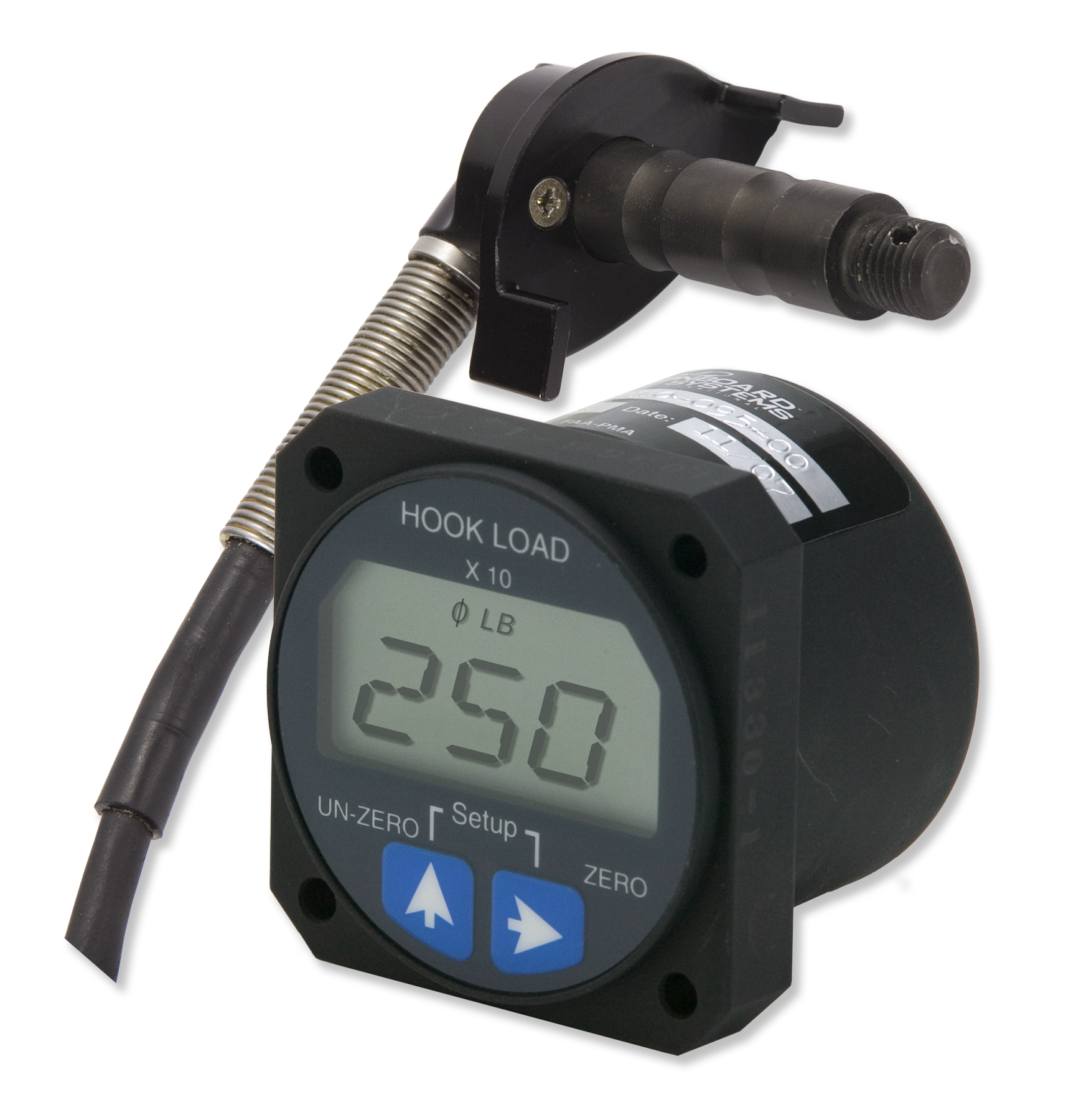

  • Includes All Hardware:All necessary hardware for a full installation is included. Comes with the load cell, cockpit indicator, and wiring harness.
  • Improve Customer Relations:Eliminates disputes over weight promised or weight transported. You can report accurate statistics to your customer right away.
  • Reduce Maintenance Costs:Never make load weight miscalculations again. Your pilots will know the load weight every time. Greatly reduce repairs from airframe overstress and overload.
  • Digital Readouts in the Cockpit:Provides a clear, backlit, easy-to-read digital weight readout in pounds or kilograms. Easy to operate without increasing pilot workload.
  • Scaleable Analog Output:Built-in 0-5 volt output can be used to feed data to a variety of Helicopter Flight Data Monitoring (HFDM) devices (such as a Hobbs meter, Latitude, or Flightcell data recorder, etc.). Signal can be used to alert the pilot if a load is on the hook or provide load weight information to a data tracking or GPS system.
  • NVG Backlighting Option:Contact us for more information about our 5 VDC NVG Backlight C-39 Cockpit Indicator.


Certifications

FAAFAA CANADACANADA BRAZILBRAZIL EASAEASA MALAYSIAMALAYSIA
