Retrofit Kits for Airbus H125 CRFS Installations

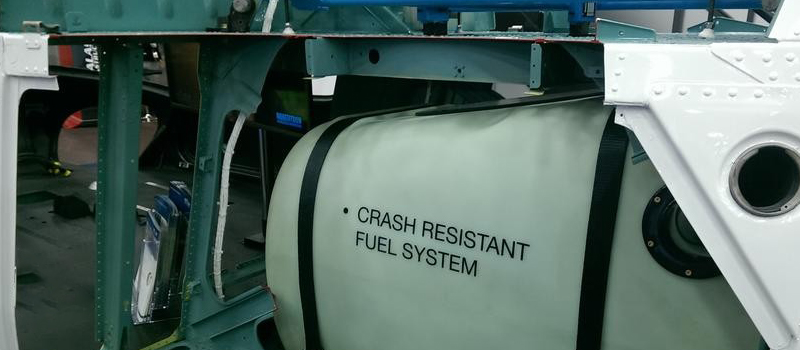

c-40 installed in aircraft

Airbus H125 with crash resistant fuel system (CRFS) upgrade installed. In order to use your Onboard Systems swing cargo hook kit with a CRFS, you will need to upgrade your external load equipment as well.

If you are operating an AS350/H125 for external load missions with an Onboard Systems swing kit and have an aircraft equipped with the newest crash resistant fuel system (CRFS) from Airbus, or if you have been putting off that upgrade due to delays in certified options for underbelly cargo swing installations, you'll be very pleased to hear that Onboard has certified a number of CRFS-compatible kits and retrofit kit options.

Current Cargo Hook Kit Description Upgrade
Kit
Description
200-280-03 Cargo Hook Swing Kit with TALON LC Hydraulic Hook 200-469-00 Cargo Hook Swing Retrofit Kit
200-280-06 Cargo Hook Swing Kit with Surefire TALON LC Hydraulic Hook 200-469-00 Cargo Hook Swing Retrofit Kit
None Installed AS350 B3, B3e & H125 with CRFS and no fixed provisions installed 200-468-00 Fixed Provisions Kit
None Installed AS350 B3, B3e & H125 with CRFS and fixed provisions installed 200-455-00 Removable Provisions Kit
None Installed AS350 B3, B3e & H125 with CRFS and fixed provisions installed 200-455-02 Removable Provisions Kit (with Surefire)



If you already have an existing Onboard Systems cargo hook swing kit installed on your helicopter, you should purchase our Cargo Hook Swing Retrofit Kit (P/N 200-469-00) which contains only the additional components you'll need to upgrade your current configuration to work with CRFS.

If you have a CRFS and the compliant fixed provisions already installed on your aircraft, you can choose from one of our Removable Provisions Kits (P/N 200-455-00 or 200-455-02) to add compatible external load equipment to your configuration.

Finally, if you have an aircraft that has never been equipped with fixed provisions, you can purchase the Fixed Provisions Kit (P/N 200-468-00) and have it installed while other work (such as upgrading to the CRFS) is being done in preparation for future external load missions. You can then purchase the Removable Provisions Kit at a later date, or rotate a compatible swing cargo hook kit between other aircraft in your fleet as needed.

Please contact us for more information.
