Specifications
Part Number
200-403-00
Design Load
2,650 lb. (1,202 kg)
Unit Weight
10.5 lb. (4.76 kg)
Typical Overhaul
5 years/1,000 hours

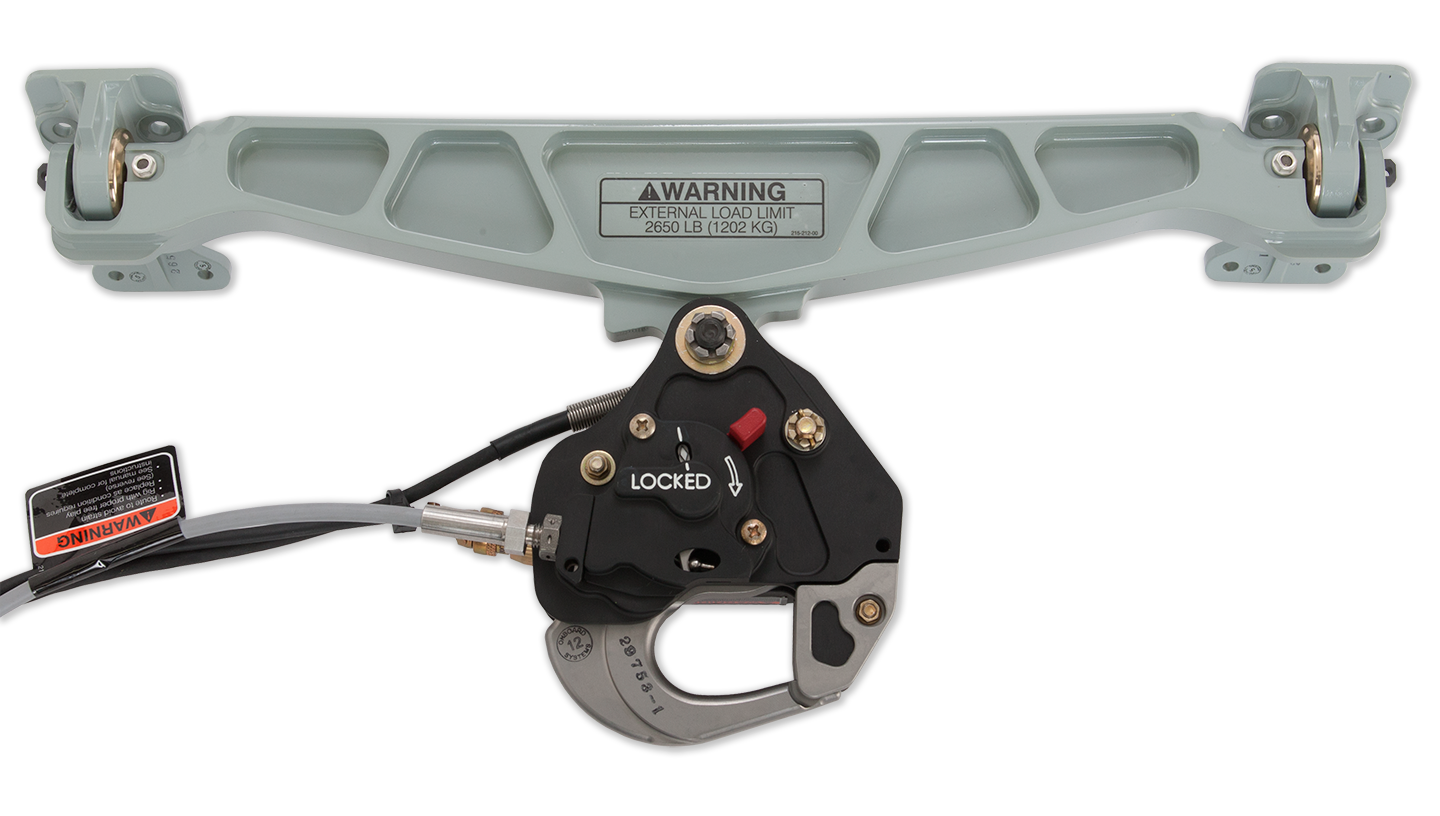

Bell 407

Cargo Hook Kit with TALON LC Keeperless Hook, Fixed Provisions & Onboard Weighing System

Product Number: 200-403-00

Call to confirm availability

Onboard's fixed beam cargo hook kit offers many important improvements and benefits over the trolley system design. Factory-installed by Bell on new 407 aircraft, our cargo hook kit eliminates the side-to-side impact of the original trolley system. It interfaces with the standard fixed provisions kit from either Bell or Onboard Systems and mounts to the existing cargo hook hard points on the belly of the aircraft.

NOTE: Includes fixed provisions kit

View Manuals, Certifications, and Hardware Notes Send Me A Quote Add to Cart

Benefits

  • Simplified Design:The fixed beam design greatly reduces the total part count, which reduces maintenance costs and service requirements.
  • Weight Reduction:Elimination of the trolley system allows for a 35% reduction in weight.
  • Improved Ground Clearance:Offers additional clearance from the lowest hanging point of the cargo hook, which is important for operations in remote field locations where prepared landing pads are few and far between.
  • Airframe & Hook Protection:Built-in travel limits keep the hook from striking the airframe and relieve strain on the hook control cables.
  • Sleek, Low-Profile System Add-on:Our pin load cell weighing system mounts to one side of the hook by replacing the connecting bolt, rather than attaching as a separate link above the hook. Increases ground clearance by eliminating extra linkage, while still allowing the pilot to know the exact weight of the load.
  • The Onboard Advantage:Our cargo hook kits can be installed on new or existing aircraft using standard hand tools. Time between overhauls is five years or 1,000 operating hours. And because Onboard Systems maintains a large inventory of cargo hook kits and spare parts, we can usually ship your order out quickly.
