Specifications
Part Number
200-431-00

Bell 505 Jet Ranger X

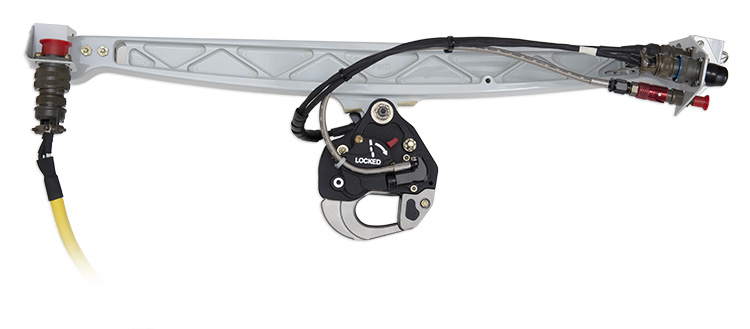

Cargo Hook Kit with TALON LC Hydraulic Hook & Onboard Weighing System

Product Number: 200-431-00

Onboard Systems is developing a cargo hook system for the new Bell 505 Jet Ranger X aircraft that will be built around our safety-forward TALONĀ® LC Hydraulic Cargo Hook. These STC kits will include all of the Onboard exclusive advantages operators have come to expect from our products, such as built-in travel limits, a low profile for maximum ground clearance, as well as our optional Surefire Release Technology.

NOTE: FAA, Transport Canada, and EASA certification pending

View Manuals, Certifications, and Hardware Notes

Benefits

  • Hook & Airframe Protection:Built-in travel limits in forward, aft, and lateral directions prevent damage to aircraft and control cables.
  • Low Profile:System is designed to provide excellent ground clearance.
  • Simple to Remove:The suspension system is rapidly removable from the aircraft without the use of tools or loose parts to manage.
  • Sleek, Low-Profile System Add-on:Our pin load cell weighing system mounts to one side of the hook by replacing the connecting bolt, rather than attaching as a separate link above the hook. Increases ground clearance by eliminating extra linkage, while still allowing the pilot to know the exact weight of the load.
  • Optional Surefire Release Technology:Cargo hook can be fitted with our Surefire™ technology, which provides about a half-second delay from when the electrical release button is pressed until the hook opens to help guard against inadvertent releases.
  • TALON® LC Hydraulic Hook:Our hydraulic hook greatly increases load security by using a hydraulically activated release mechanism instead of a traditional manual release cable.
  • Sign Up & Stay Informed:Join the information list so that we can provide you with product updates. Click here to sign up.

Why Onboard

We maintain a large inventory of products, spare parts, and complete systems on site, allowing immediate shipment of most items. So while other manufacturers may put you on a waiting list for months, we’re able to ship most equipment the same day it's ordered.
