Carousels Product Number 200-420-00

Price: $ 25,800.00

Add to Cart Call to confirm availability

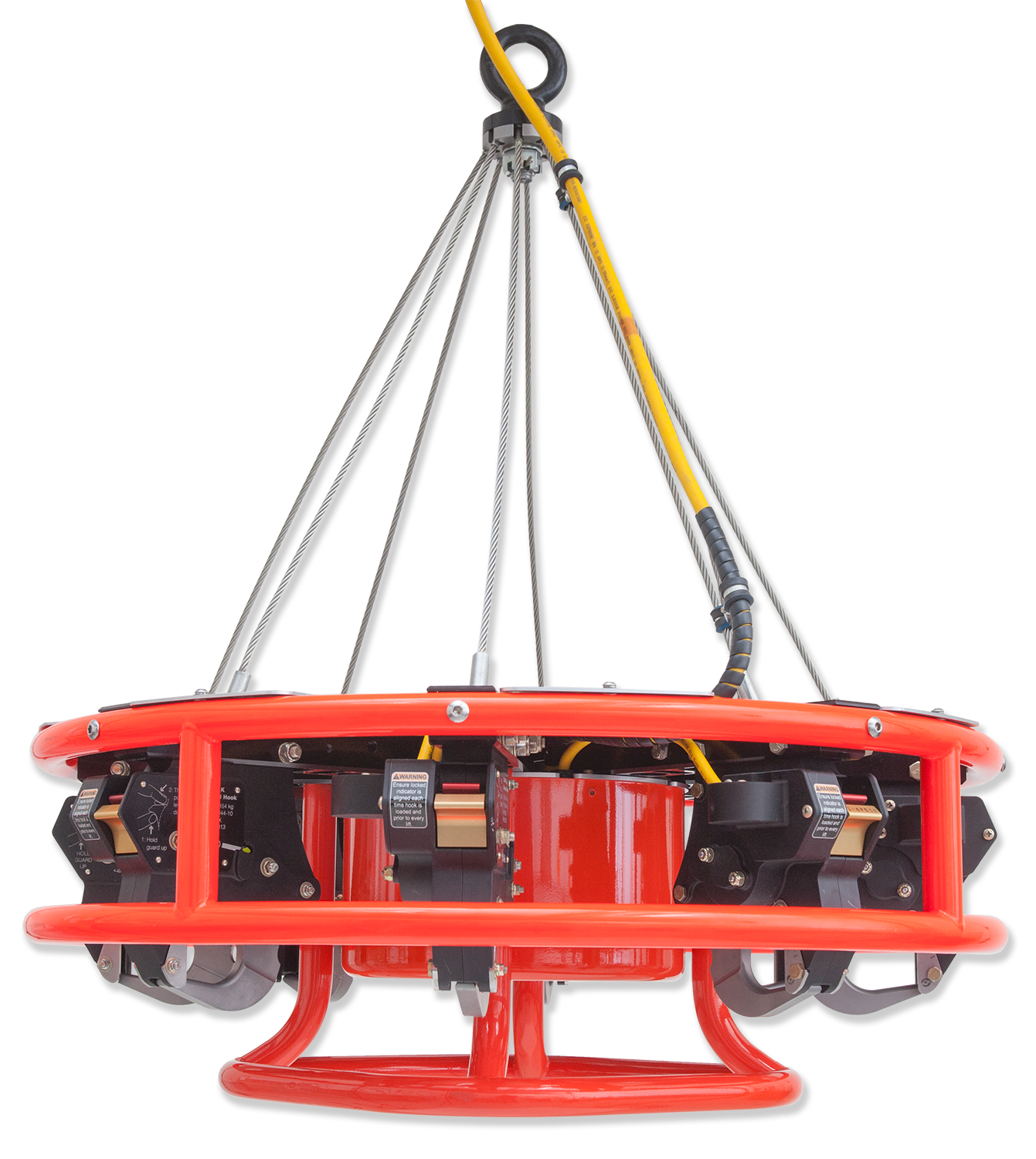

SPIDER SMART 8-Hook Carousel System (with lighted hooks)

The SPIDER® Smart Carousel is Onboard's next generation in carousel equipment. Designed to work with our lighted TALON® 1K Remote Hooks and our new controller, the SPIDER Smart Carousel gives you all the features you've been asking for in a multiple-drop delivery system. For maximum versality, it can be configured in the field with your choice of four, six or eight independent load points by adding or removing spokes and hooks.

Note:

Benefits

  • Illuminated Feedback: Carousel provides illuminated feedback showing which hook is staged for release.
  • Automatic Hook Advancement: Controller keeps track of which hooks have been released and automatically advances to arm the next hook.
  • Controller Override: Pilots can bypass the auto advance settings and drop loads out of sequence if needed, including drop-all functionality.
  • Easy to Configure: A DIP switch lets you enable or disable various custom features (such as drop-all functionality, select hook, etc.) without the need to flash new software.
  • Automatic Hook Detection: Controller senses the number of cargo hooks connected and adapts its logic.
  • Designed for Harsh Environments: Controller is positively O-ring sealed with minimal potential leak points. A GORE-TEX® vent allows the system to breathe.
  • Dual Hoop Weldment: Carousel frame has been upgraded to a dual hoop weldment to provide greater hook protection.
  • 3-wire Control: Lets you use your existing long line equipment, connections and swivels with some minor aircraft re-wiring to provide a continuous circuit to the carousel (see owner's manual for more information).
  • Easy Stowage: Flexible cables make it easy to store in your hangar until needed.

Specifications

  • Part Number200-420-00
  • Unit Weight 76 LB (35 KG)
  • Max Load (Single Hook) 650 LB (295 KG)
  • Maximum Combined Load 3,200 LB (1,452 KG)
  • Electrical Requirements ≤ 8 A @ 28 VDC
  • Throat Size (Height x Depth) 1.38 x 2 IN (35 x 51 MM)
  • Typical Overhaul 5 years/1,000 hours
